Lubricating blade

stock



In Stock: 3 pcs.
Product no.: 7513

Variations of this product

Image:
Product no. / Goods name:
In Stock:
Price:

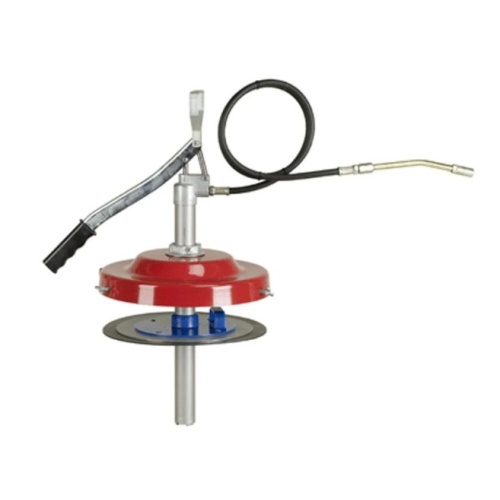

Manual lubricating pump
6431
Manual lubricating pump
stock


Full specifications

New easy FILL 400 gets along without any spring mechanism. You simply insert a grease cartouche, place a grease tow piston and set it off. Thanks to a vacuum in the lubricator head the piston moves to the top all alone and smoothly. Thanks to the variable Stroke-principle the lubricator is operated easily with the lever minimum movement.

Technical data:
Grease press connection on the delivery side: M 10 x 1
Filling volume (cubic cm): 400
Filling possibilities: 400 g grease cartouche, DIN 1284 (12 511), (12 514)
Pumping pressure up to (bar): 400
System burst pressure (bar): 900
Grease press head burst pressure (bar): 1,200
Grease press pipe wall thickness (mm): 1

Specifications:
Grease tube M 10 x 1, 300 mm long
Chuck grease coupling M 10 x 1
Tow piston, 10 pieces
Ergonomic handle, non-slipping, very good transmission system and manual lifting. The device processes NLGI 2 fats at 10 °C as a minimum. Cylindrical thread on the grease press tube is shock proof and enables quick and simple screwing on. Fast bleeding by turning the grease press tube by half a revolution. Designed for use in harsh conditions.
